On the popular TV show
Mythbusters the hosts Jamie Hyneman and Adam
Savage made a miniature fake Moon set and took pictures on it that
perfectly reproduced some of the Apollo photographs. Doesn't that
prove the Apollo photos could have been faked in a studio?
Yes. But the exact myth that Adam and Jamie busted was a little
more complicated than that.
|
Fig. 1 - Apollo 14 lunar module Antares.
(NASA: AS14-68-9487)
|
|
|
Conspiracists say that pictures like Fig. 1 can only have been
taken using multiple light sources. They say that the shadows which
appear to fall in one direction in the foreground and in another
direction in the background cannot have been made by only one light.
And since the Apollo photos were said to be taken using only one light
source (the Sun), the visible evidence in the photos doesn't match the
circumstances under which they were said to be taken.
The myth being tested is, "Shadows cast by a single faraway light
source must always appear parallel." Naturally the way to test that
is to set up a scene with some objects to cast shadows, and light it
with only one light source placed far enough away.
You can certainly do it at full scale. (And many other
photographers and Clavius contributors have done just that.) Or you
do it in miniature: all the geometry just scales down in magnitude,
but remains valid for the test. The Mythbusters chose to do it with a
scale model because they were trying specifically to replicate the
observations in Fig. 1.
|

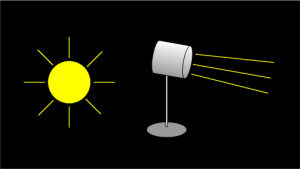

Fig. 2 - The sun (left) sends out rays in all
directions that diverge quickly with distance. Many studio lights
(right) send out focused beams of light whose rays diverge less.
|
|
|
Conspiracists note correctly that the sun is so far away that its
rays arrive at the lunar surface practically parallel. The key to
understanding why the Mythbusters' experiment is valid lies in two
important points. First, you don't have to put an artificial light
very far away from the scene before its rays are also parallel enough
for scale photography. Second, their studio light employs a Fresnel
lens that focuses the light. The sun sends out light in all
directions. There is no lens for it. A Fresnel lighting instrument
artificially limits the divergence of the light rays as they travel
from the light to the subject (Fig. 2).
Their experiment proved that terrain
and contour also has an effect on how shadows are seen and
photographed. And that effect wasn't accounted for in the conspiracy
theorists' expectations. In more appropriate terms: "Myth Busted!"
|
Fig. 3 - Buzz Aldrin at the foot of the Apollo 11 lunar
module. (NASA: AS11-40-5869)
|
|
|
Conspiracists also say that photos like Fig. 3 cannot have been
taken with only one light source because they interpret the shading
and shadow on the astronaut to mean that light must be coming from
multiple directions.
They claim the good lighting on the shaded parts of objects, and
on objects fully in shadow, can only be explained by the use of
supplementary lighting (called "fill lighting" in photography lighting
terminology). And since there was no explicit fill lighting
techniques or equipment used on Apollo missions, conspiracists once
again say the observed effects in the photo are inconsistent with the
circumstances under which NASA says they were taken.
The myth tested here is, "Where light comes from only one source
in one direction, then surfaces that aren't directly lit must appear
very dark."
That too can be tested in a studio by scale models and studio
lights. Lighting designers and photographers know that surfaces
reflect light. Hence a study of "global" illumination effects from
one light and its incidental reflections on objects in a scene only
has to replicate the optical properties of the materials and their
relative distances in order to be scientifically accurate. The
strength of the light can be adjusted by varying its distance and its
luminosity.
The Mythbusters took great pains to achieve the proper
reflectivity of the lunar surface and the space suit. Jamie is shown
measuring the geometric albedo of his simulated lunar surface in
exactly the same way astrophysicists measure the actual albedo of the
real lunar surface: in the exact opposite direction from the direction
at which the light arrives.
We suspect that the light reflected from the lunar surface on
either side of the lunar module's shadow provides the fill light for
this scene. The Mythbusters set up a geometrically equivalent scene,
made the reflectivity values also equivalent to the objects in the
photo, and arranged scrupulously for only one source of light to
illuminate the scene. Their photographs show proportionally similar
lighting levels to the "impossible" Apollo photograph, proving that
the ordinary objects in the scene are sufficiently reflective. Again: "Myth Busted!"
The Mythbusters' experiment is quite similar to other experiments that were done by
professional film crews. A single light is most certainly capable of
setting up complex patterns of diffuse reflection.
SETTING THE
BAR
The myth being tested in this segment of the show was not,
"It's impossible to fake Apollo photography in the studio."
Refuting the Moon landing hoax claims has never relied upon
proving that faking it was impossible. Conspiracists want their
critics to believe that's what they have to do. But the Apollo
missions would be real merely if fakery wasn't done, whether
such fakery would have been possible or not. Similarly if there's no
meal on the table, it means that dinner just wasn't cooked, not that
cooking the meal was impossible.
Conspiracy theorists typically argue indirectly. They don't pit the merits of their
theory against the merits of competing theories. Instead they try to
erode confidence in some "official story" to the point where it seems
arbitrarily incredible, whereupon their conspiracy theory is supposed
to stand as the "default" conclusion when the official story fails.
The conspiracists never put the conspiracy theory "default" to the
test to see whether it too make sense.
In other words, they never test their tests. The myths that were
tested on the program are the basis for the conspiracy theory "rules"
that purport to distinguish genuine photographs from fake ones. But
before relying upon them, the conspiracy theorists never put them to
the test. Their suppositions about shadow direction are wrong. Their
supposition about fill lighting is wrong. In the real world, where
there is no "default" conclusion and where both hypotheses are tested
equally rigorously, the conspiracists' conclusions simply don't hold.
They appear to hold only because the conspiracist authors manipulate
the discussion to avoid a meaningful test.
Ironically the conspiracy line of reasoning is the one based on
suppositions of impossibility. They say it's impossible for shadows
to behave a certain way under a single light. They say it's
impossible for objects in shadow to be visible. Now that those things
are shown to be possible, they have to find a new argument.
